JGM Industrial Range
Trailer Winch
No.1247

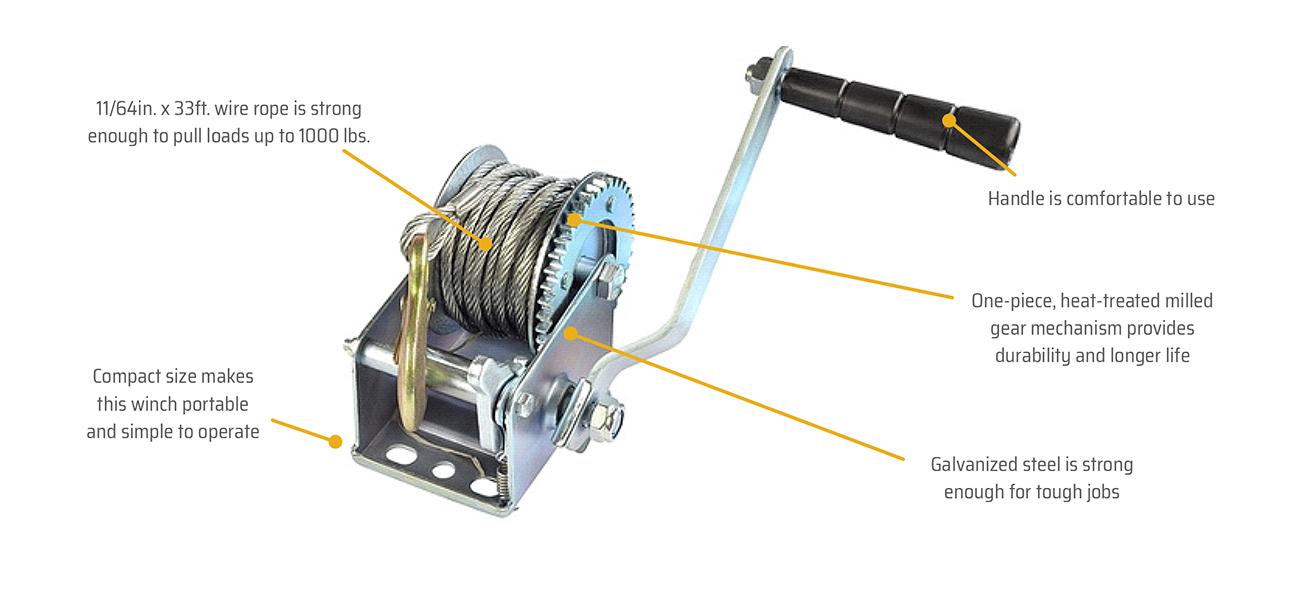

Trailer Winch enables safe, easy loading and unloading of boats. Features one-piece, heat-treated milled gears for durability. Compact, portable winch is simple to operate. Includes 11/64in. x 33ft. wire rope.
• Wide range loaded capacity
• Single speed
• 4.1:1 gear ratio
• Includes 11/64in. x 33ft. wire rope with safety hook
• One-piece, heat-treated milled gears
• Stainless steel or galvanize steel.
• Compact, portable design
• Simple operation
|
W.L.L/B.S.
|
800lbs/1200lbs, 1200lbs/1800lbs, 2500lbs/3750lbs, 3000lbs/4500lbs.
|
|
Certification
|
CE-SGS |
|
Gear
|
Main Gear: Φ9.6cm*6mm, Φ13cm*6mm ,
Axle Gear: Φ4.2cm*8mm,
One Piece ,Milling Shaped , Heat Treated Gears and Pawl
|
|
Body
|
Stainless steel or Steel plate A3 ,
Thk : 2.5mm
L 12cm * W 8.2cm * H 8cm
L 13.5cm * W 9cm * H 9.5cm
L 19cm; * W 10cm * H 11cm
L 19cm * W 10cm * H 11cm
|
|
Handle
|
black or red ABS plastic : Φ2.5cm*16cm
steel shaft : L:19cm*W:2.5cm*T:0.5cm
|
|
Cable
|
Φ4.0mm-Φ6.0mmX10m ( A36 steel) |
|
Hook capacity
(size)
|
W.LL/BS : 1000kg/1500kg
(60mm*88mm)
|
|
Finish
|
Stainless steel or Galvanized or Powder coated. |
|
Transmission Structure
|
2way, Gear ratio : 3.1:1. 4.1:1
2 way 2 speed, Gear ratio : 4.1:1/8:1
|
